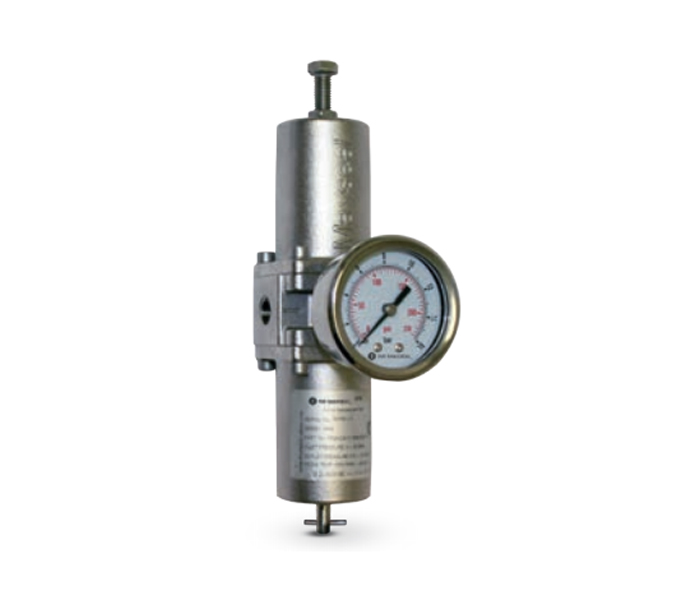

IMI IFR
Port size：1/4 NPT, 1/2 NPT
Suitable for marine,offshore, food processing and dental applications Model for precision regulation and high flow rates
Reliable and long life, ideal for one time installation
ATEX classification complies with EN 13463 for non-electrical equipment
產品應用
♦ Technical features
Medium:
Compressed air
Operating pressure:
20 bar (290 psi) maximum
Outlet pressure range:
Standard：0,5…10 bar (7... 1 45 psi)
Optional：0,5…6/16 bar (7... 87/232 psi)
Flow characteristics:
See page 2
Element:
Standard：40…50 μm
Optional：5... 1 0 μm, 20…30 μm
Port sizes:
Standard：1/4 NPT, 1/2 NPT, 1/8 NPT (gauge)
Optional:
G1/4 or G1/2; G1/8 (gauge)
Relief port:
12 mm
Drain:
Manual or automatic
Fluid/Ambient temperature:
Standard： -30…+90° C (-22…+194° F)
Optional：-55…+90° C (-67…+194° F)
Air supply must be dry enough to avoid ice formation at temperatures below +2° C (+35° F).
Materials:
Valve body, top & bottom covers, valve trim：316 stainless steel
Seat and spring: stainless steel
O-rings, seals and diaphragm：NBR

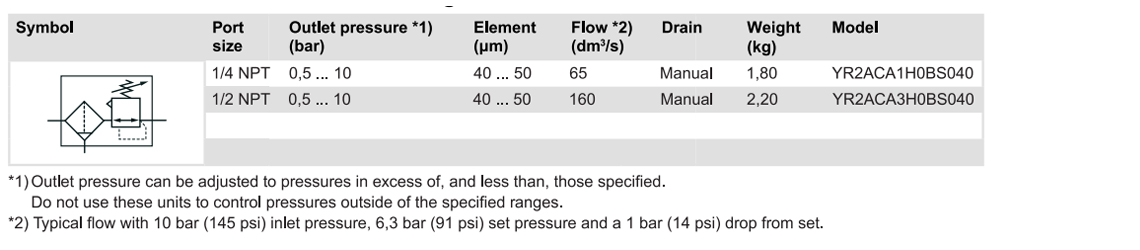

♦ Technical data, standard model, relieving
♦ Option selector
♦ Flow characteristics

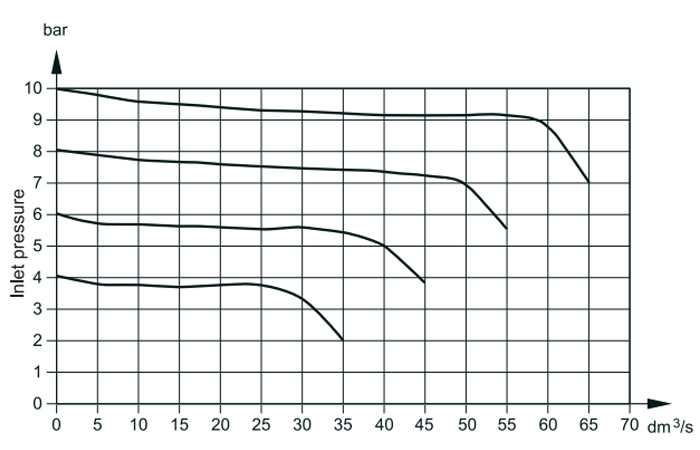

- 1/4"

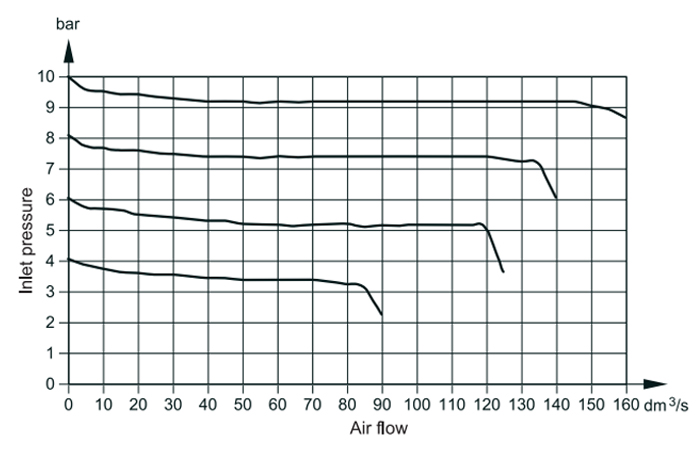

- 1/2"

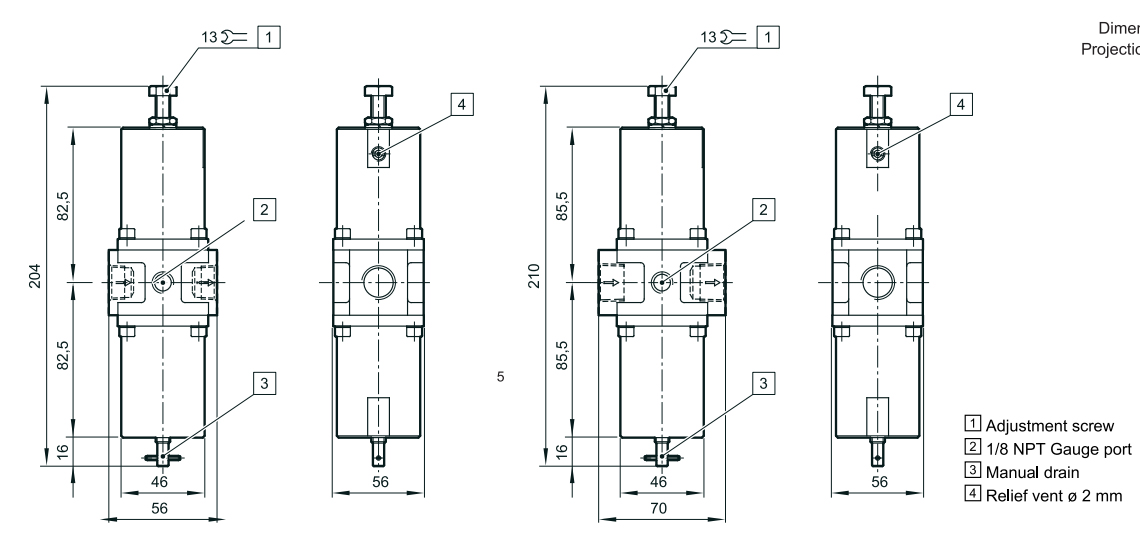

♦ Dimensions

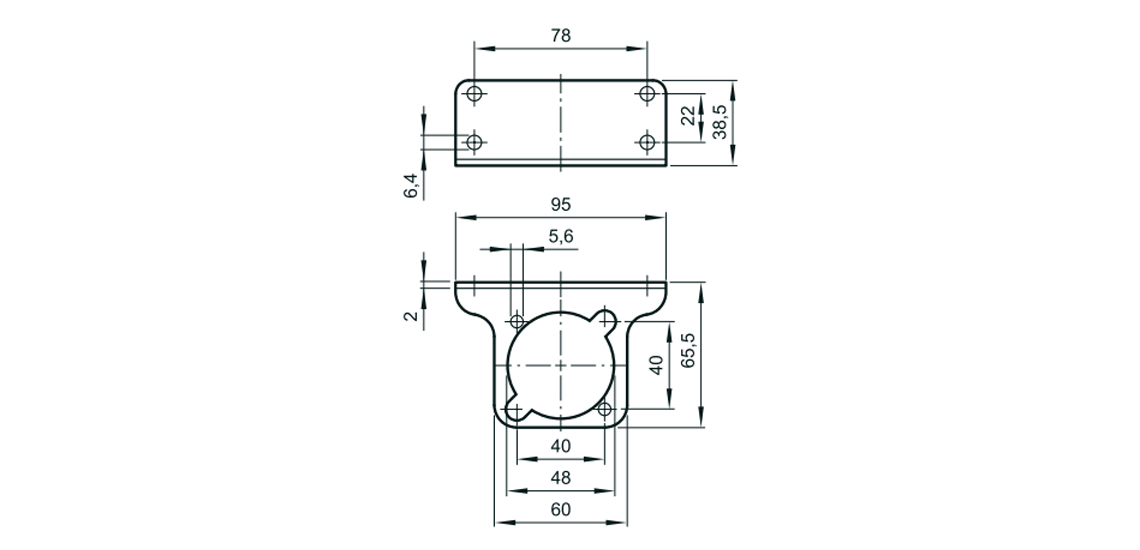

♦ Bracket mounting kit

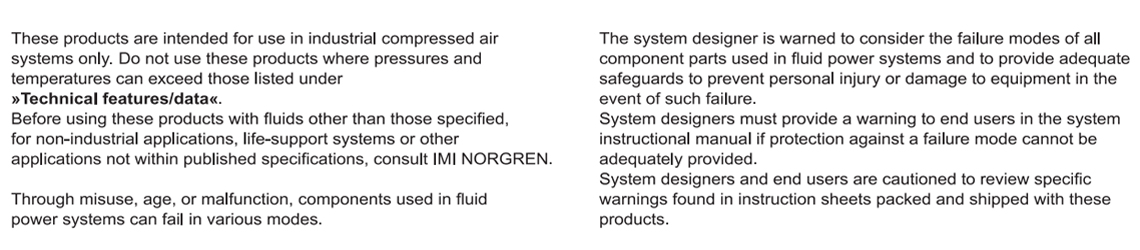

♦ Warning
