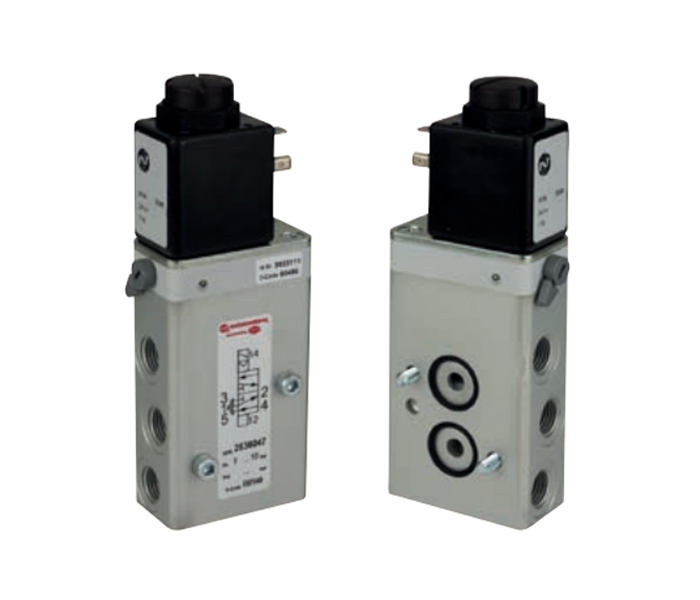

IMI 26360 80207
Port size: G 1/4 and NAMUR interface
For single and double operated actuators
Manual overrien with and without detent
Simple design of soft seal spool system
Easily interchangeable solenoid
Maintenance-free
All valves available with Ex protected coils (ATEX or other international approvals)
產品應用
♦ Technical features
Medium:
Compressed air, filtered, lubricated or non-lubricated
Operation:
Indirect solenoid operated T-spool valves
Operating pressure:
max. 10 bar (145 psi) (see specifications)
Port size:
G 1/4
Flow direction:
Fixed
Mounting:
Optional, preferably with solenoid on top
Ambient/Media temperature:
-20° …+60°c (-4° …140° F) Depending on solenoid system Air supply must be dry enough to avoid ice formation at temperatures below +2°C (+35° F).
Materials:
Housing: Aluminium anodised Pilot flange: Plastic (POM) Seals: NBR

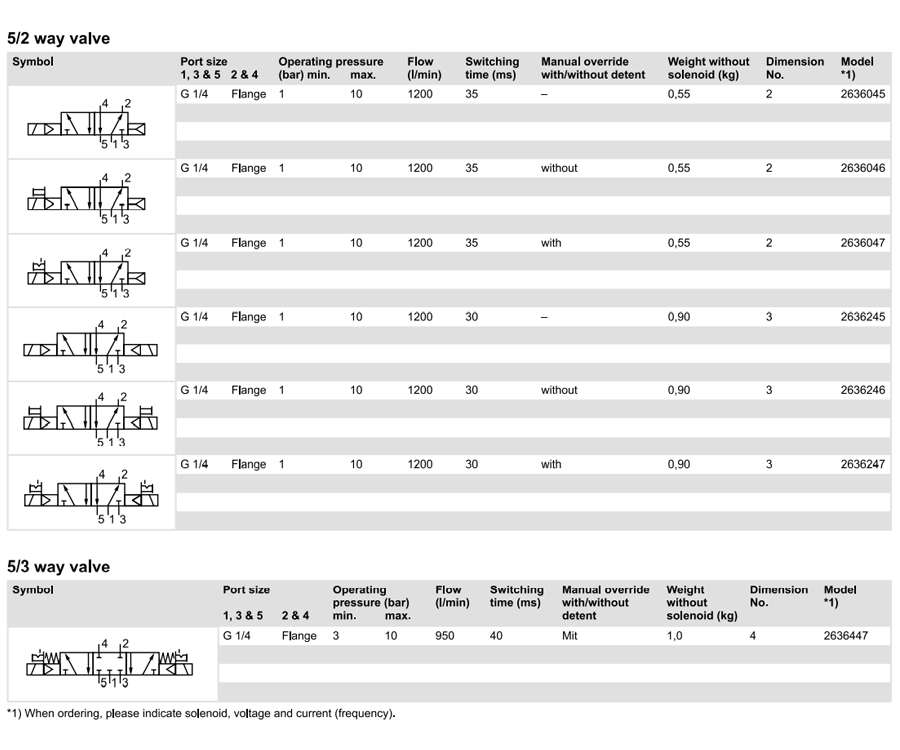

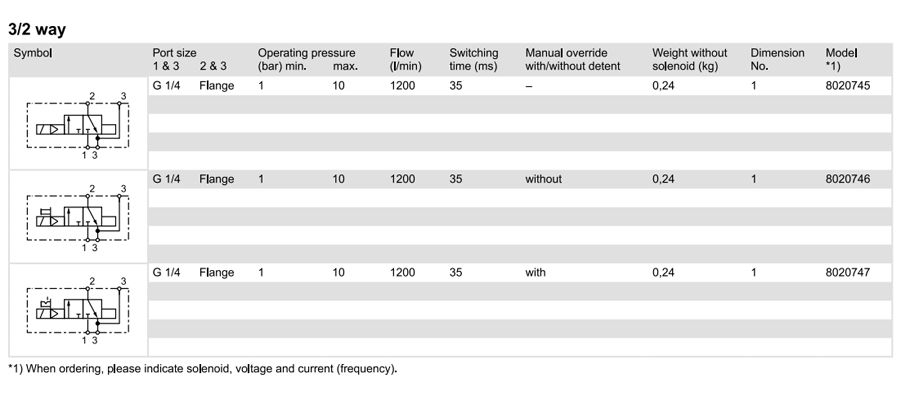

♦ Technical data
